ADE 364 & ADE 366 Essential Diesel Engine Bolt Tightening Torques


ADE 364
Main Bearing Bolts
12pt bolts:
 50 Nm + 90-100°
Hex bolts:
 80-90 Nm + 90-100°


ADE 364
Connecting Rod Bolts
step 1 = 40-50 Nm
step 2 + 90-100°


ADE 364
Cylinder head Bolts
Stage 1 = 60 Nm
Stage 2 = 90 Nm
Stage 3 = 120-130 Nm
Stage 4 + 90-100°

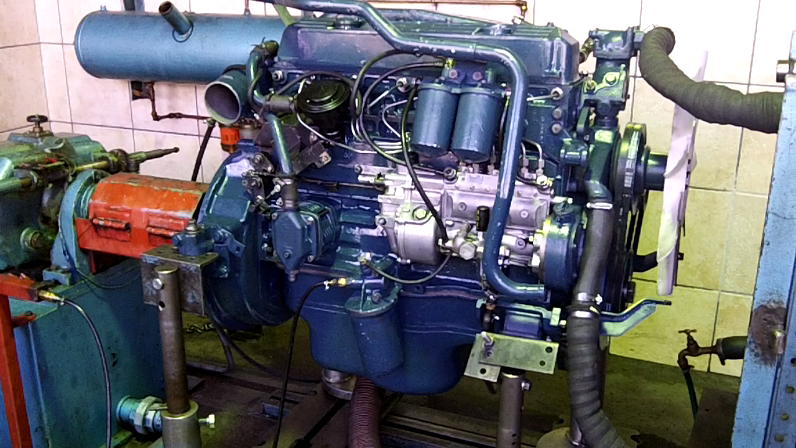

ADE 364 & ADE 366 Diesel Engine Specs



Arrangement ADE 364
ADE 364
in line 4 engine,
4-stroke cycle
naturally aspirated

ADE 364C
in line 4 engine,
4-stroke cycle
altitude compensated

ADE 364T
in line 4 engine,
4-stroke cycle
turbocharged

ADE 364TI
in line 4 engine,
4-stroke cycle
turbocharged
intercooled


Arrangement ADE 366
ADE 366
in line 6 engine,
4-stroke cycle
naturally aspirated

ADE 366C
in line 6 engine,
4-stroke cycle
altitude compensated

ADE 366T
in line 6 engine,
4-stroke cycle
Turbocharged

ADE 366TI
in line 6 engine,
4-stroke cycle
turbocharged
intercooled


Displacement
ADE 364N
3.972 liter, 231 CID

ADE 366N
5.958 liter, 346 CID

Bore
97.5 mm,  3.839 in

Stroke
133.0 mm, 5.236 in

Compression ratio:
17.25:1 Naturally Aspirated
17.1:1 Compensated
16.5:1 Turbocharged
16.5:1 Turbo-intercooled


Power ADE 364
 ADE 364N
61 kW, 82 hp @ 2800

 ADE 364C
70 kW, 94 hp @ 2800 rpm

 ADE 364T
85 kW, 114 hp @ 2600 rpm

 ADE 364TI
100 kW, 134 hp @ 2600 rpm

Torque ADE 364
 ADE 364N
266 Nm, 196 lb.ft @ 1500 rpm

 ADE 364C
300 Nm, 221 lb.ft @ 1400 rpm

 ADE 364T
380 Nm, 280 lb.ft @ 1400 rpm

 ADE 364TI
408 Nm, 301 lb.ft @ 1400 rpm



Power ADE 366
 ADE 366N
100 kW, 134 hp @ 2800

 ADE 366C
104 kW, 139 hp @ 2800 rpm

 ADE 366T
125 kW, 168 hp @ 2600 rpm

 ADE 366TI
150 kW, 201 hp @ 2600 rpm

Torque ADE 366
 ADE 366N
408 Nm, 301 lb.ft @ 1400 rpm

 ADE 366C
425 Nm, 313 lb.ft @ 1450 rpm

 ADE 366T
560 Nm, 479 lb.ft @ 1450 rpm

 ADE 366TI
640 Nm, 472 lb.ft @ 1400 rpm


Weight approx:
approx:
ADE 364 - 739 lb, 335 kg
ADE 364T - 756 lb, 343 kg
ADE 364TI - 756 lb, 343 kg

ADE 366 - 981 lb, 445 kg
ADE 366T - 1014 lb, 460 kg
ADE 366TI - 1036 lb, 470 kg



ADE 364 & ADE 366 Diesel Engine workshop repair Manuals


Designations
German - English
A = Turbocharger = T
L = Intercooler = I
OM = Diesel engine = ADE

example:
OM366 = ADE366N
OM366A = ADE366T
OM366LA = ADE366TI
