ADE 407 and ADE 409 Essential Diesel Engine Bolt Tightening Torques


ADE 407 and ADE 409
Main Bearing Bolts

12pt bolts:
 300 Nm + 90-100 degrees
Hex bolts:
 80-90 Nm + 90-100 degrees



Click for ADE 407 ADE 409
engine manuals and specs

ADE 407 and ADE 409
Connecting Rod Bolts

step 1 = 100 Nm
step 2 + 90-100 degrees





Click for ADE 407 ADE 409
engine manuals and specs

ADE 407 and ADE 409
Cylinder Head Bolts

step 1 =  10 Nm
step 2 =  60 Nm
step 3 = 120 Nm
step 4 = 180 Nm
final step + 90-100 degrees


Click for ADE 407 ADE 409
engine manuals and specs


ADE 407 and ADE 409 Diesel Engine workshop repair Manuals


Dimensions approx: ade multi engine dimensions image

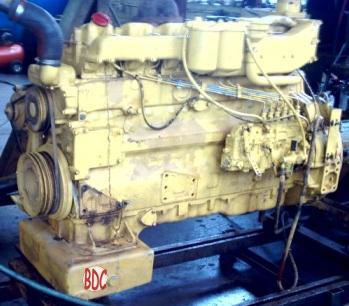

ADE 407 and ADE 409 Diesel Engine Specs


ADE 407 and ADE 409
Arrangement

407N
6 Cylinder In-Line
4-stroke cycle
Naturally aspirated

407C
6 Cylinder In-Line
4-stroke cycle
Compensated

407T
6 Cylinder In-Line
4-stroke cycle
Turbocharged

Click for ADE 407 ADE 409
engine manuals and specs

ADE 407 and ADE 409
Displacement, compression ratio
and weight

Displacement
11.41 liter

Compression ratio
407N 16.5:1
407C 16.0:1
407T 16.0:1

Weight approx
407N 795 kg, 1749 lb




Click for ADE 407 ADE 409
engine manuals and specs



ADE 407 and ADE 409
Power

407N
233 hp, 174 kW @ 2200 rpm

407C
234 hp, 175 kW @ 2200 rpm

407T
276 hp, 206 kW @ 2200 rpm

Click for ADE 407 ADE 409
engine manuals and specs

ADE 407 and ADE 409
Torque

407N
614 lb.ft, 823 Nm @ 1400 rpm

407C
727 lb.ft, 975 Nm @ 1300 rpm

407T
868 lb.ft, 1177 Nm @ 1300 rpm

Click for ADE 407 ADE 409
engine manuals and specs
