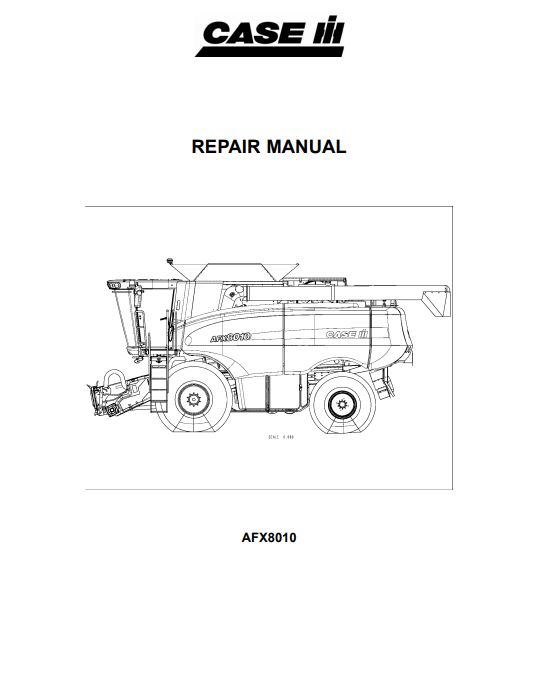

Manuals displayed on this page.

Get manuals on this page for US$50

Process Details:

Click here for full access to all manuals and
technical specs at Barrington Diesel Club

Click Buy Now button

Pay through PayPal
Upon payment:
You will be redirected to download your links

Case AFX 8010
Cylinder Head Bolts

B.10.A.72 - D.20.A.10

Step 1 = 60 Nm
Step 2 = 120 Nm
Step 3 = 120 degrees
Step 4 = 60 degrees

Case AFX 8010
Bore, Stroke and
Compression Ratio

B.10.A - D.40.A.10

Bore
125.0 mm

Stroke
140.0 mm

Compression ratio
16.2:1 - 17.8:1

Case AFX 8010
Power, Displacement
and Arrangement

B.10.A - D.40.A.10

Power
313 kW, 420 hp @2100 rpm

Arrangement
6 Cyl, Diesel, 4-Stroke
Direct Injection

Displacement
10.3 L
