Popular Diesel Engine Specs




Ford 5000 tractor engine, Bolt Tightening Torques


Ford 5000 tractor engine
Connecting Rod Nut torque

60-65 lb.ft, 82-88 Nm


click for Ford 5000 tractor engine
 specs and manuals

Ford 5000 tractor engine,
Main Bearing Bolt torque

115-125 lb.ft, 156-170 Nm


click for Ford 5000 tractor engine
 specs and manuals

Ford 5000 tractor engine,
Cylinder Head Bolt torque

Step 1 = 90 lb.ft, 122 Nm
Step 2 = 100 lb.ft, 136 Nm
Final step = 110 lb.ft, 150 Nm


click for Ford 5000 tractor engine
 specs and manuals

Ford 5000 tractor engine cylinder head bolt torque sequence
Ford 5000 tractor engine cylinder head bolt torque sequence - click for engine specs and manuals


Ford Ranger engine section of workshop manual p1
Ford 5000 tractor PDF workshop repair manual, 174 pages, Click to download

Ford 5000 tractor Engine Specifications


Ford 5000 tractor engine,
Displacement, Bore, Stroke,
Compression Ratio

prior to 20th July 1968
Bore
4.2 inches 106.7 mm

Stroke
4.2 inches 106.7 mm

Displacement
233 CID, 3.818 liter

Compression Ratio
Diesel engines 16.5:1
non-diesel engines 7.5:1

after 20th July 1968
Bore
4.4 inches 111.8 mm

Stroke
4.2 inches 106.7 mm

Displacement
256 CID, 4.195 liter

Compression Ratio
Diesel engines 16.5:1
non-diesel engines 7.8:1


click for Ford 5000 tractor engine
 specs and manuals


Dis Hannes se trots, daardie Ford 5000 trekker



Hannes het die Ford 5000 trekker 25 jaar terug gekoop toe hy 17 jaar oud was.

Die trekker het 4500 ure opgehad, maar die klok het nie meer gewerk nie.

Hy het die big end bearings vervang en ringe.

Die 5000 stroop elke jaar grondbone en werk daagliks op die plaas.

Hy het tans 11600 ure op die nuwe klok. En loop dus dan vir 50 jaar al met die selfde main bearings en olie pomp!


That Ford 5000 tractor is Hannes' pride and joy



Hannes purchased That Ford 5000 tractor 25 years ago when he was 17 years old.

The tractor had 4500 hours on it, but the gauge no longer worked.

He changed big end bearings and rings.

The 5000 harvests groundnuts every year and works daily on the farm.

The new gauge now has 11,600 hours on it. So it's already run for 50 years with the same main bearings and oil pump!

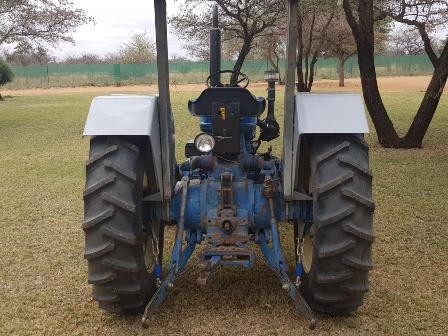

Pictures of Hannes' 5000 Ford Tractor


Ford 5000 tractor  - 1
Ford 5000 tractor image 1, click for specs and manuals

Ford 5000 tractor - 2
Ford 5000 tractor image 2, click for specs and manuals

Ford 5000 tractor engine specs and manuals
Ford 5000 tractor image 3, click for specs and manuals

Ford 5000 tractor 4
Ford 5000 tractor image 4, click for specs and manuals
