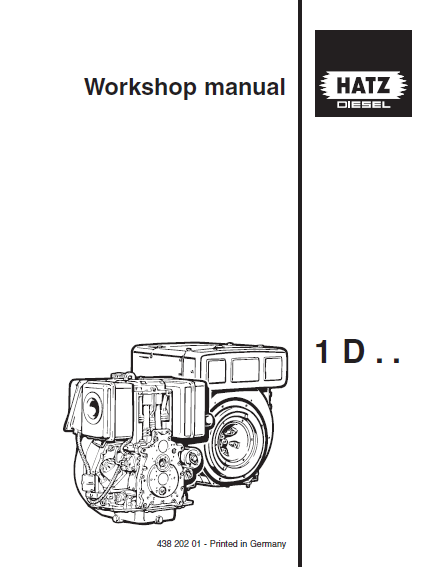

Manuals displayed on this page.

Get manuals on this page for US$25

Process Details:

Click here for full access to all manuals and
technical specs at Barrington Diesel Club

Click Buy Now button

Pay through PayPal
Upon payment:
You will be redirected to download your links

Hatz 1D30-1D40
Connecting Rod Bolt Torque

40 Nm, 30 lb.ft

Hatz 1D30-1D40
Main Bearing Bolt Torque

40 Nm, 30 lb.ft

Hatz 1D30-1D40
Cylinder Head Bolt Torque

50 Nm, 37 lb.ft

Hatz 1D30-1D40
Displacement, Bore,
and Stroke

Displacement
1D30, 1D31, 1D40, A1D35, A1D40
0.377 liter

Bore
86 mm

Stroke
65 mm

Hatz 1D30-1D40
Arrangement

1 Cylinder

ALL
Air-cooled
Four-stroke diesel engine

Hatz 1D30-1D40
Compression Ratio

1D30 = 20.5:1
1D31 = 21.0:1
1D40 = 20.5:1
A1D35 and A1D40 = 20.5:1
