Hatz W35 Manuals, Engine Specifications & Bolt Torques

Click "Buy Now"
button on right

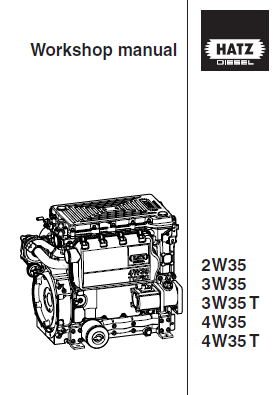

What manuals will I get?
Manuals displayed on this page.

Get manuals on this page for US$25

Process Details:

Click here for full access to all manuals and
technical specs at Barrington Diesel Club

Click Buy Now button

Pay through PayPal
Upon payment:
You will be redirected to download your links

Hatz
2W35 3W35 3W35 T 4W35 4W35 T
Connecting Rod Bolts

21.4 Nm +1, 15.8 lb.ft +-0.75

Hatz
2W35 3W35 3W35 T 4W35 4W35 T
Cylinder Head Bolts

5 Nm +1, 3.7 lb.ft +-0.75

Hatz
2W35 3W35 3W35 T 4W35 4W35 T
Displacement, Bore,
and Stroke

Displacement
2W35 = 42.2 CID
3W35 = 63.3 CID
4W35 = 84.5 CID
3W35T = 63.3 CID
4W35T = 84.5 CID

Bore
70 mm

Stroke
90 mm

Hatz
2W35 3W35 3W35 T 4W35 4W35 T
Arrangement

Arrangement
2W35 = 2 cylinder
3W35 = 3 cylinder
4W35 = 4 cylinder
3W35T = 3 cylinder turbo charged
4W35T = 4 cylinder turbo charged

ALL
Fluid-cooled
Four-stroke diesel engine

Hatz
2W35 3W35 3W35 T 4W35 4W35 T
Weight

approx
incl. electric starter, air-cleaner and exhaust silencer
2W35 = 64 kg
3W35 = 76 kg
4W35 = 80 kg
3W35T = 88 kg
4W35T = 92 kg
