Hino N04 Essential Diesel Engine Bolt Tightening Torques



Hino N04 Main Bearing capscrews
Step1 = 44 lb.ft, 60 Nm
Step2 = plus 60 degrees
Step3 = plus 60 degrees

Hino N04 Connecting Rod Bolts
Step1 = 22 lb.ft, 30 Nm
Step2 = plus 60 degrees
Step3 = plus 60 degrees


Hino N04 Main Cylinder Head Bolts
Bolts 1 thru 18

Step 1 = 44 lb.ft, 60 Nm
Step 2 = plus 90 degrees
Step 3 = plus 90 degrees

Hino N04 Minor Cylinder Head Bolts
Bolts 19 thru 22

Step 1 = 41 lb.ft, 55 Nm


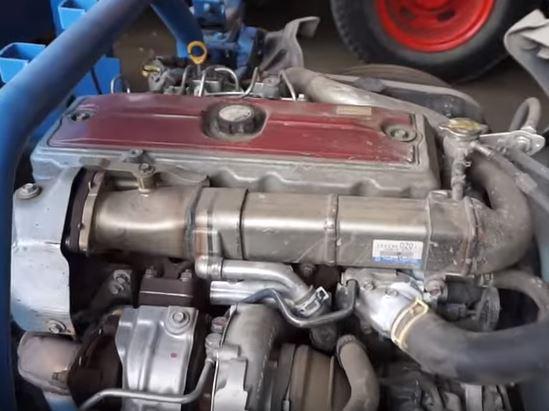

Hino N04 Diesel Engine Specs



Hino N04 Displacement, bore and stroke

Displacement
4.0 liter
244 CID

Bore
4.09 in
104 mm

Stroke
4.65 in
118 mm

Hino N04 Dimensions and weight

Dimensions
approx
length = 887 mm, 34 in
width = 716 mm, 21 in
height = 751 mm, 29 in

Weight
approx
396 Kg,
873 lb

Hino N04 Power and arrangement

Power
122 hp, 90 Kw @ 2200 rpm

Arrangement
4 cylinder in-line
