Isuzu 4BG-6BG Essential Diesel Engine Bolt Tightening Torques



Isuzu 4BG-6BG
Main Bearing Caps


226 - 245 Nm, 116 - 181 lb.ft

Isuzu 4BG-6BG
Connecting Rod Bolts


Step 1 = 39 Nm, 29 lb.ft
Step 2 = 60 - 90 degrees

Isuzu 4BG-6BG

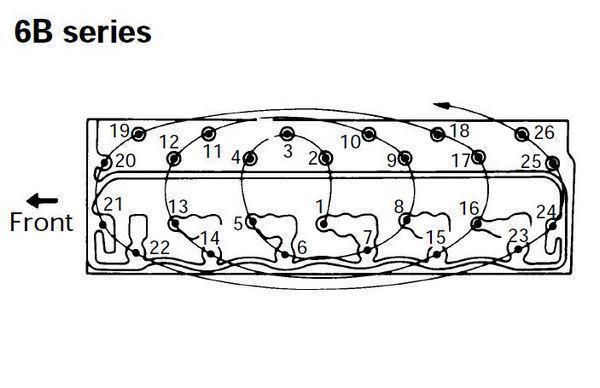

Cylinder Head Bolts


Step 1 = 69 Nm, 51 lb.ft
Step 2 = 88 Nm, 65 lb.ft
Step 3 = 90 - 120 degrees

Isuzu 4BG-6BG Diesel Engine Specs



Isuzu 4BG-6BG
Displacement, Bore and Stroke


Displacement
4BG: 4.329 liter
6BG:6.494 liter

Bore
105 mm

Stroke
125 mm

Isuzu 4BG-6BG
Arrangement, Weight
and Compression Ratio


Arrangement
4BG: 4 cylinder, water-cooled, four cycle, vertical in-line.

6BG: 6 cylinder, water-cooled, four cycle, vertical in-line.

Weight Approx
BB-4BG1T: 360 Kg
BB-6BG1: 484 Kg

Compression Ratio
18.0:1

Isuzu 4BG-6BG
Dimensions


Dimensions Approx

4BG
Length = 904 mm
Width = 684.8 mm
Height = 907 mm

AA-6BG1
Length = 1143 mm
Width = 672 mm
Height = 797 mm

BB-6BG1
Length = 1204 mm
Width = 762 mm
Height = 961 mm
