Scania DS11 Essential Diesel Engine Bolt Tightening Torques



Scania DS11 Cylinder Head Bolts
M16 Bolts
Step 1 = 120 Nm, 90 lb.ft
Step 2 = 180 Nm, 130 lb.ft
Step 3 = 240 Nm, 177 lb.ft

M18 Bolts
Step 1 = 150 Nm, 110 lb.ft
Step 2 = 230 Nm, 170 lb.ft
Step 3 = 300 Nm, 220 lb.ft

Scania DS11 Diesel Engine Specs



Scania DS11 Displacement, arrangement, bore and stroke

Displacement
11.0 liter, 671 CID

Arrangement
6 Cyl In-Line

Bore
127.0 mm, 5.0 in

Stroke
145.0 mm, 5.7 in

Scania DS11 Power, torque and compression ratio

Power
300 hp 224kW @ 2000 rpm

Torque
911 lb.ft 1235 Nm @ 1200 rpm

Compression Ratio
15.0:1

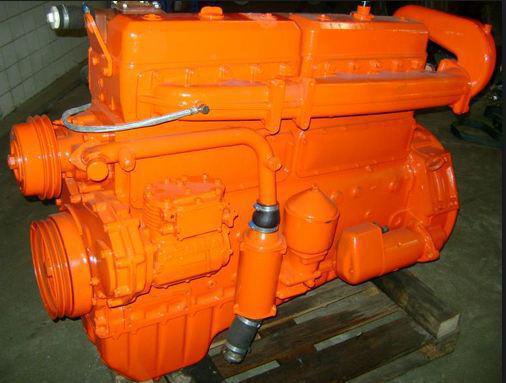

Scania DS11 - engine image

Scania DS11 Weight and dimensions

Weight
Model - approx:
DN11 = 920 kg
ds11 = 940 kg
DSC11 = 990 kg

Dimensions
approx:
length 1538 mm, 60.5 in
width 736 mm, 29 in
height 1117 mm, 44 in


Scania DS11 Diesel Engine workshop repair Manuals


Scania DSC 09, 11, 12 and 14 EDC - electronics manual p1
Scania DSC 09, 11, 12 and 14
EDC-4 - electronics - Manual
89 pages
Scania DSC09, 11 and 14 cooling system manual p1
Scania DSC 09, 11 and 14
Cooling system - Manual
58 pages
Scania DSC 09, 11, 12 and 14 EDC-3 - electronics manual p1
Scania DSC 09, 11, 12 and 14
EDC-3 - electronics - Manual
95 pages
